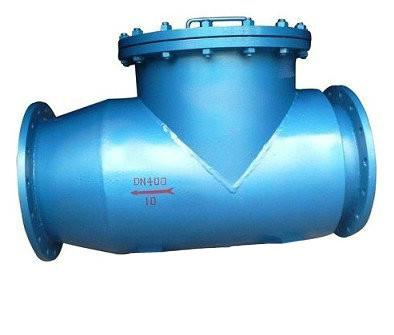

Product Description:
The filtration system is made up of several different components,
including a quartz sand filter, activated carbon filter, manganese
sand filter, shallow bed sand filter, self-cleaning filter, and
precision filter. Depending on the user's specific requirements,
different types of filter cartridges and filter media can be chosen
for varying degrees of precision. When the system is under a
certain amount of pressure, it's able to effectively remove
impurities like colloidal particles, organic matter, and suspended
solids from turbid water. Additionally, it's also capable of
eliminating both odors and colors, resulting in highly purified and
filtered water.
This innovative filtration equipment can be widely used in a
variety of different industries including power, electronics,
beverages, tap water treatment, petroleum, chemicals, metallurgy,
textiles, papermaking, food, swimming pools, municipal engineering,
and other processes that require industrial water, domestic water,
circulating water, and wastewater treatment. Its wide range of
applicability makes it an essential piece of equipment in any
industrial or commercial setting that requires a constant supply of
clean, purified water.
| Inlet pipe diameter(mm) | Maximum flow rate(t/h) | Drag coefficient | Length(mm) | Weight(kg) | Power(w) |
|
| 15 | 1.8 | ≤0.5 | 150 | 6 | 15 |
| 25 | 4.9 | ≤0.5 | 500 | 10 | 15 |
| 40 | 12 | ≤0.5 | 500 | 15 | 20(40) |
| 50 | 19 | ≤0.5 | 500 | 15 | 20(50) |
| 65 | 28 | ≤0.5 | 500 | 15 | 30(60) |
| 80 | 50 | ≤0.5 | 500 | 20 | 30(60) |
| 100 | 80 | ≤0.5 | 500 | 25 | 50(80) |
| 125 | 125 | ≤0.5 | 600 | 35 | 60(100) |
| 150 | 180 | ≤0.5 | 600 | 48 | 80(120) |
| 200 | 320 | ≤0.5 | 600 | 60 | 100(180) |
| 250 | 490 | ≤0.5 | 700 | 78 | 120(200) |
| 300 | 710 | ≤0.5 | 700 | 90 | 150(240) |
| 350 | 970 | ≤0.5 | 800 | 125 | 200(280) |
| 400 | 1260 | ≤0.5 | 800 | 160 | 250(320) |
| 450 | 1600 | ≤0.5 | 900 | 200 | 300(360) |
| 500 | 1970 | ≤0.5 | 1000 | 230 | 300(400) |
| 600 | 2850 | ≤0.5 | 1000 | 265 | 350 |
| 700 | 3880 | ≤0.5 | 1200 | 395 | 450 |
| 800 | 5060 | ≤0.5 | 1200 | 330 | 500 |
| 900 | 6410 | ≤0.5 | 1200 | 380 | 550 |
Features:
Pre-treatment is an essential step in the production of purified
water, boiler feedwater, industrial process water, and drinking
water. The importance of pre-treatment lies in its ability to
remove contaminants and impurities from the water source. These
impurities can negatively impact the quality and effectiveness of
the finished product, making pre-treatment an essential process for
a variety of applications.
For purified water, pre-treatment can involve a range of processes,
including sedimentation, ultrafiltration, and reverse osmosis.
These methods are designed to remove impurities such as bacteria,
viruses, and dissolved solids, resulting in highly pure, deionized
water that is ideal for use in laboratory settings.
Boiler feedwater also requires pre-treatment to remove impurities
that can cause corrosion, scaling, and fouling in the boiler
system. Pre-treatment processes for boiler feedwater include
demineralization, mineral removal, and deaeration.
Industrial process water is used in a range of manufacturing and
production applications. Pre-treatment for industrial process water
can vary depending on the specific application, but typically
involves a combination of filtration, chemical treatment, and
clarification to remove impurities and ensure a consistent,
high-quality water supply.
Finally, drinking water pre-treatment is an important step in
ensuring that water is safe and healthy for consumption.
Pre-treatment processes for drinking water can include
sedimentation, filtration, disinfection, and chlorination to remove
impurities such as bacteria, viruses, and harmful chemical
compounds.
Technical Parameters:
Efficient Filtration
Meeting on-site filtration requirements can be achieved by
selecting various filter media effectively removing impurities such
as suspended solids, organic matter, colloidal particles, and
microorganisms, which can greatly improve water quality.
Biological purification
Water's purification effect can be enhanced by further degrading
organic matter and harmful substances in water, through biological
purification.
Backwash regeneration
The filtering performance of quartz sand and continuous water
purification can be restored by utilizing the backwashing and
regeneration process.
Space-saving
Its compact structure and small footprint allow for the effective
saving of space in an area.
Easy installation
Through its simple operation and easy installment, it can be
directly connected to inlet and outlet water pipes for immediate
use. It has a long service life reducing operating costs.
Strong adaptability
The product is suitable for different water qualities and
quantities, exhibiting excellent adaptability.
Applications:
Water Filtration Applications
Industrial process water undergoes several types of filtration
requirements to protect nozzles and heat exchange station water.
The industrial circulating water in steel, metallurgy, papermaking,
heat exchangers, power generation, petrochemicals, food, and air
conditioning systems need filtration too.
Raw water undergoes filtration before treatment, including surface
water, rivers, lakes, and seawater.
Filtration is also necessary for irrigation systems in agricultural
fields, parks, municipal water supplies, and golf courses.
Water filtration can benefit various industries such as power,
electronics, beverages, tap water treatment, petroleum, chemicals,
metallurgy, textiles, papermaking, food, swimming pools, and
municipal engineering. It covers industrial water, domestic water,
circulating water, and wastewater treatment.
